Dati Tecnici:

• Socket processore: Socket AM5 (LGA1718)
• Chipset: X870E
• Compatibilita processori: AMD Ryzen 9000, 7000 series (con BIOS aggiornato)
• Supporto memoria RAM:DDR5, fino a 256 GB
  Frequenza nativa: DDR5-6000+
  Supporto profili EXPO
  8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors
  9600+MT/s(OC)**/9000+MT/s(OC)*** with Ryzen™ 8000 Series Processors
  8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors
• Slot memoria: 4 x DIMM
• Fattore di forma: ATX
• Dimensioni (LxP): 305 x 244 mm
• Slot di espansione:1 x PCIe 5.0 x16 (GPU)
  1 x PCIe 4.0 x16 (x4)
• Grafica:1 x HDMI port
  2 x USB4 (40Gbps) ports support USB Type-C® display outputs
• Storage:M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s
• AMD RAIDXpert2 Technology:Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
• Connettivita WiFi: WiFi 7 (802.11be), fino a 320 Mbps
• Connettivita Ethernet:1 x Realtek® 5Gb Ethernet ASUS LANGuard
• Wireless & Bluetooth:Wi-Fi 7 (MediaTek MT7927)
  2×2 Wi-Fi 7* (802.11be)
  Supports 2.4/5/6GHz frequency band
  Supports Wi-Fi 7 320MHz bandwidth
  Bluetooth (supports LE Audio)
• Porte USB anteriori:2 x USB 20Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Porte USB posteriori:2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  1 x USB 10Gbps port (1 x USB Type-C® with up to 30W PD/PPS Fast-charge)
  10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)
• Audio:ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  – Impedance sense for front and rear headphone outputs
  – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  – Supports up to 32-Bit/384 kHz playback on front panel

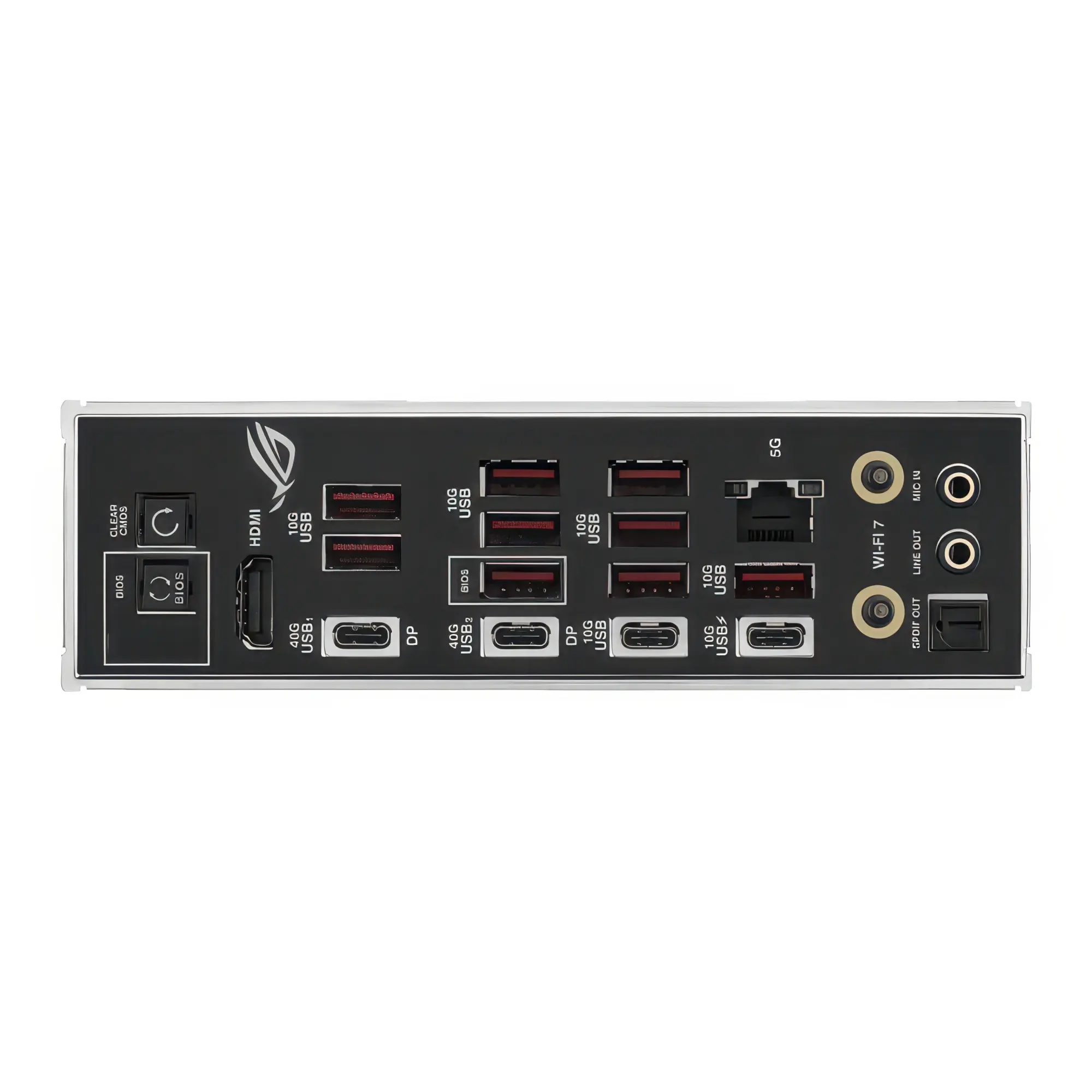

• Back Panel I/O Ports:2 x USB4® (40Gbps) (2 x USB Type-C® with DP Alt mode)
  11 x USB 10Gbps port(s) (9 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek® 5Gb Ethernet port
  2 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
• Fan and Cooling:1 x 4-pin CPU Fan header(s)
  1 x 4-pin CPU OPT Fan header(s)
  1 x 4-pin AIO Pump header(s)
  5 x 4-pin Chassis Fan header(s)
  1 x AIO Q-Connector
• Power:1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connector
• Internal Connectors:5 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  2 x USB 20Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
  3 x Addressable RGB Gen 2 header(s)
  1 x Alteration PCIe mode switch
  1 x Chassis Intrusion header
  1 x CPU Over voltage jumper
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin Front Panel System header
  1 x Thermal Sensor header
• BIOS: 64MB (512Mb) Flash ROM, UEFI AMI BIOS
