La ROG Strix X870-F Gaming WiFi ? progettata per dominare con i processori AMD Ryzen serie 9000. Con un design di alimentazione avanzato e soluzioni AI, offre prestazioni di punta. Dotata di porte USB4?, connettivit? Wi-Fi 7 e supporto per memorie DDR5 ad alta velocit?, questa scheda madre garantisce potenza e velocit? per il gaming di alto livello e applicazioni PC avanzate basate su intelligenza artificiale.
Dati Tecnici
- Formato: ATX (305 x 244 mm)
- Chipset: AMD X870E
Socket: AM5 - RAM:
4x DDR5
8000+MT/s(OC) with Ryzen
ECC & Non-ECC Un-buffered DIMM
ASUS Enhanced Memory Profile (AEMP)
Max. 192 GB - Uscite Video:
1 x HDMI
1 x DisplayPort
2 x USB4? (40Gbps) ports support USB Type-C display outputs - Slot Espansione:
AMD Ryzen 9000 & 7000:
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen? 8000:
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode) - Storage:
2x SATA 6G
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - Ethernet:
1 x Intel 2.5Gb Ethernet - Wireless & Bluetooth:
1x Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be)
1x Bluetooth v5.4 - USB:
Posteriori:
2 x USB4? (40Gbps) ports(2 x USB Type-C? with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C? with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
Frontali:
1 x USB 20Gbps connector (supports USB Type-C?)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Connettori Back Panel I/O:

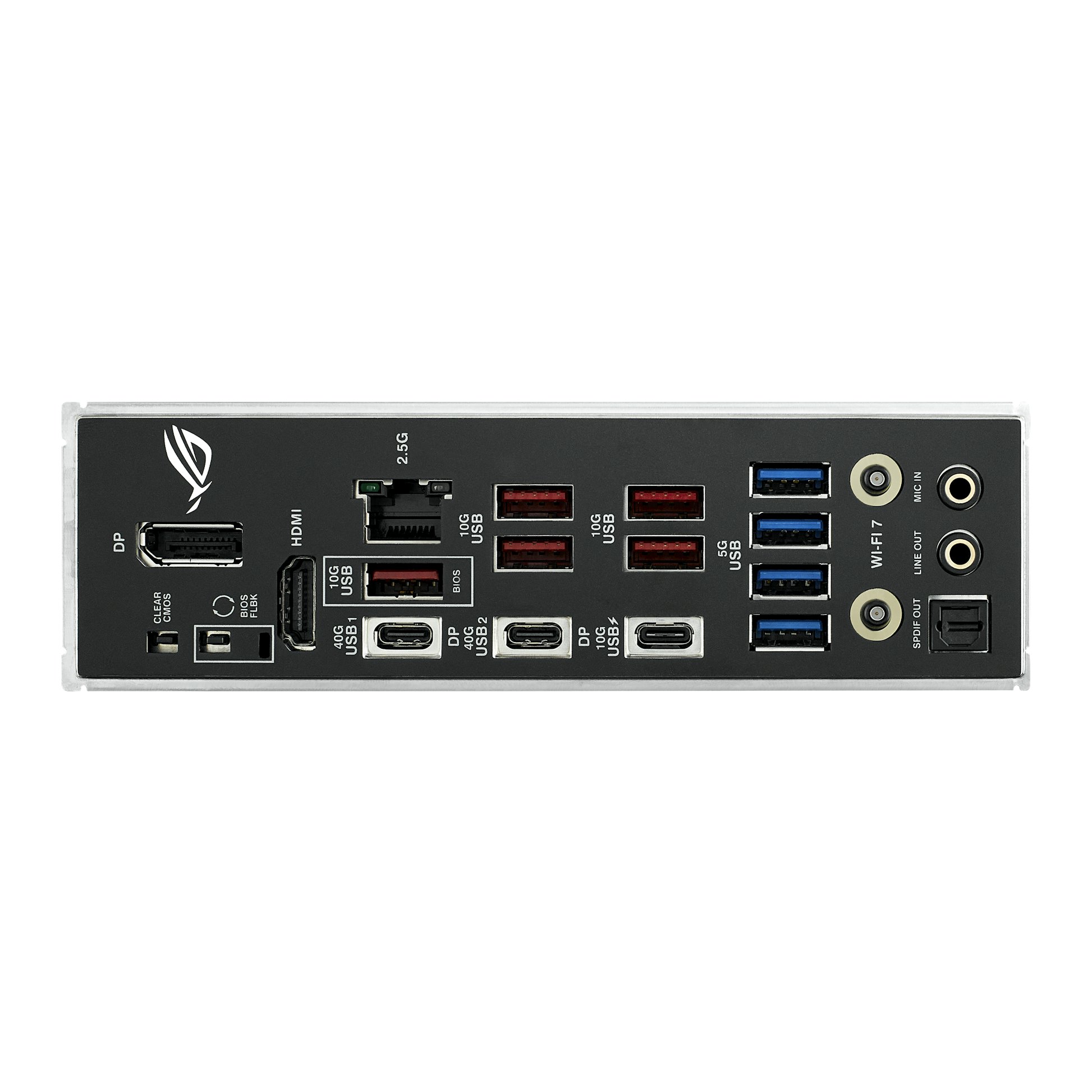

2 x USB4? (40Gbps) ports (2 x USB Type-C? with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C? with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI? port
1 x Wi-Fi module
1 x Intel? 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack? button
1 x Clear CMOS button - Connettori Interni:
Fan and Cooling:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power:
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage:
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB:
1 x USB 20Gbps connector (supports USB Type-C?)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Varie:
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
